MANUFACTURE OF
ART-NANO

We provide a wide range of Services

Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Suspendisse et justo. Praesent mattis commodo augue. Aliquam ornare hendrerit augue.

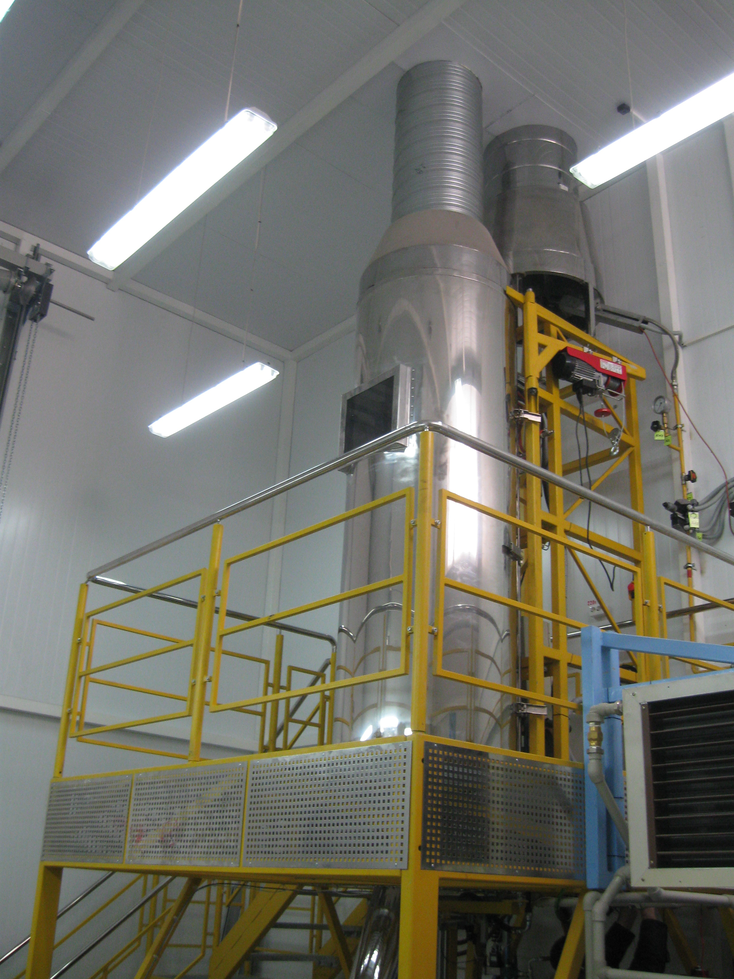

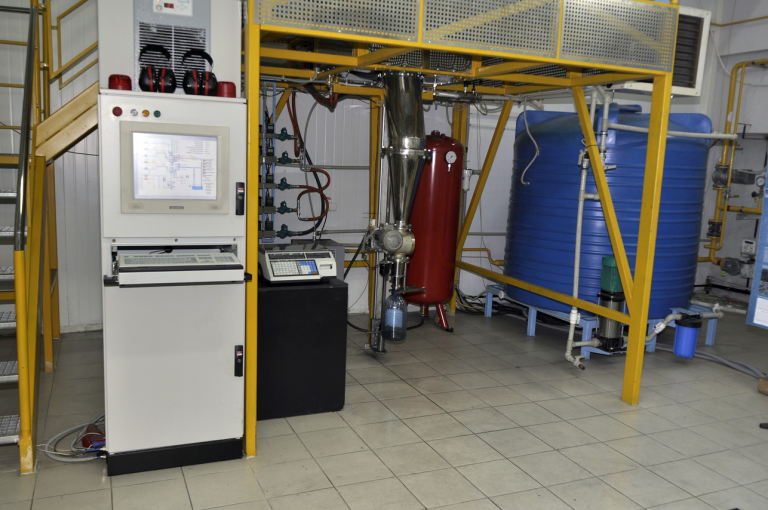

manufacture pic12
manufacture pic11[1]

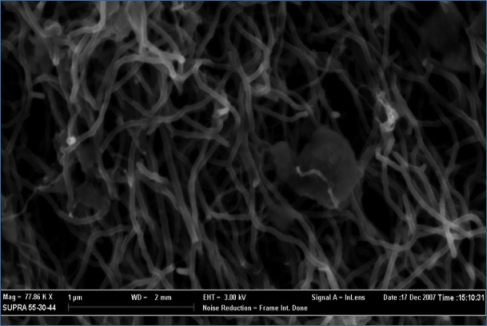

CSEM image of the obtained material sample
manufacture pic21 full

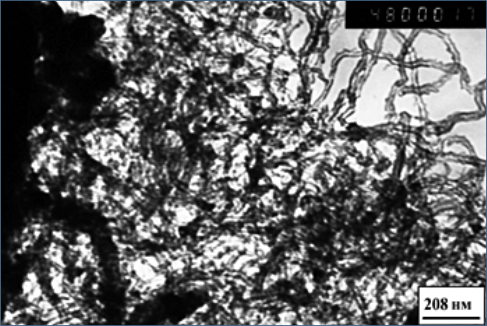

TEM image of the processed material sample​
manufacture pic22 full

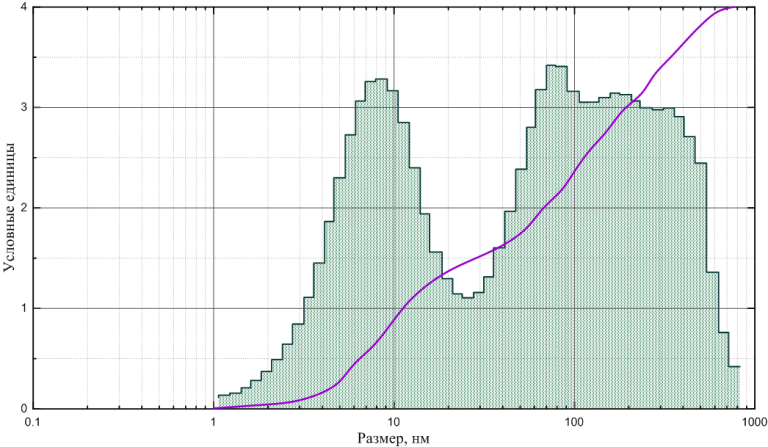

The dispersion composition of the obtained material
manufacture pic23 full

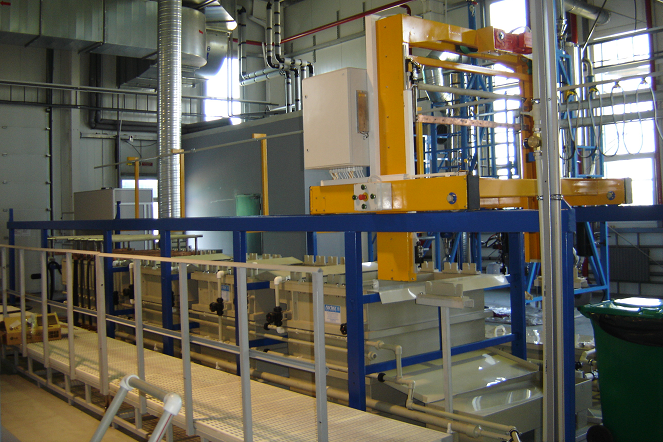

Complex Activation and modification of carbon Nanomaterial
manufacture pic31 full
Benefits of the complex activation and modification:
  • Specified functionalization and surface chemical composition for various types of nanocarbon material, as well as for those used in combination.
  • Selective extraction of metal catalysts.
  • Possibility of the activation process parametric control.
  • The use of standard equipment.
Complex Activation and Modification Line of 1kg/h Capacity
manufacture pic41 full

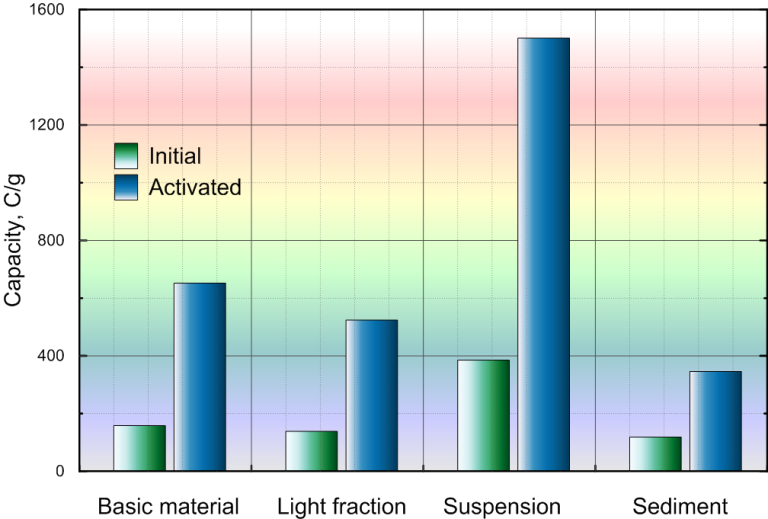

Electrochemical hydrogen sorption capacity of initial and activated fraction of CNMs. Fractions are obtained by basic materials ultrasonic treatment

Complex Activation and Modification Line of 1kg/h Capacity
manufacture pic42 full
Comparison of the dependence of the CNM basic materials capacity on the discharge conditions
  • initial CNM fraction in 1 M H2SO4;
  • activated CNM fraction in 1 M H2SO4;
  • activated CNM fraction in anionic type surfactant;
  • activated CNM fraction in cationic type surfactant;
  • activated CNM fraction in aniline
  • CNM fraction in cationic type surfactant based on quaternary ammonium salt

Initial And Activated CNM Characteristics

ParameterInitial CNM normActivated CNM norm
Apparent density, g/cm30.16-0.170.2-0.22
Ash content,%, no more thanUp to 5More than 5
The speicific adsorption sufrace, m2/gUp to 70More than 570
The oxygen content in the surface functional groups, %—20-30
Capacitive properties, Kl/g170650

Hydrodynamic Dispergation Of Nanostructured Carbon

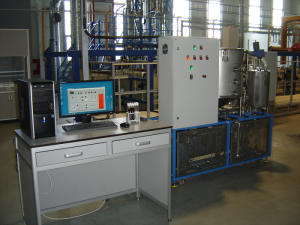

Hydrodynamic disperser
manufacture pic43 full
TEM photo of the processed material sample
manufacture pic44 full

Have Questions?

We don’t just produce carbon nanotubes—we also ensure their high-quality dispersion and seamless integration into your materials and processes. We’re ready to explain in detail how our production system works, help you select optimal synthesis parameters, and support you in incorporating nanotubes into your products.
